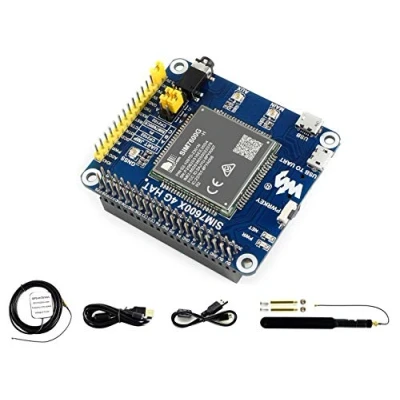

IBest waveshare 4G / 3G 2G GSM/GPRS/GNSS Hat for Raspberry Pi, Jetson Nano,Based on SIM7600G H, Support LTE CAT4, Connection, Global Positioning

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.Supports dial-up, telephone call, SMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc.Supports GPS, BeiDou, Glonass, LBS base station positioning Onboard USB interface, to test AT Commands, get GPS positioning data, and so on.Onboard USB to UART converter, for serial debugging Breakout UART control pins, to connect with host boards like Arduino/STM32.Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper.Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set). Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT. Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Packing List: .SIM7600G-H 4G HAT x1;LTE Antenna x1 ;GPS External Antenna (B) x1;USB type A plug to micro plug cable x2;RPi screws pack (2pcs) x1
