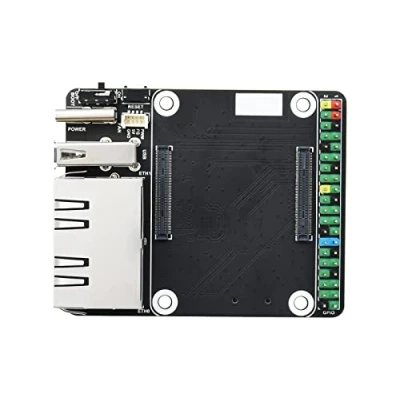

Mini Dual Gigabit Ethernet Base Board pour Raspberry Pi Compute Module 4 CM4, Intégrées ETH/Micro SD/USB Interfaces, Convient évaluer Le CM4 ou être Intégré dans des Produits Finaux

【Mini Dual Gigabit Ethernet Base Board】Designed for Raspberry Pi Compute Module 4, onboard standard CM4 socket and 40PIN GPIO header, suitable for Compute Module 4 Lite/eMMC series module, Mini size: 55.0 × 68.0mm 【Rich Interfaces】Onboard dual gigabit ethernet RJ45 connector, USB2.0 port, Micro SD card socket for Compute Module 4 Lite (without eMMC) variants, meet the needs of specific applications in development 【Fan Header】Onboard 4-wire SH1.0 port, allows speed adjustment and measurement, only 5V fans are supported 【Power Input】Supports 5V DC Type-C interface power supply. Type C interface can be used as a power supply or as a USB interface to program the image (need to use the DIP switch to switch) 【Note】Do not plug or unplug any device other than a USB while it is powered on. In order to ensure the normal power supply for CM4, please do not connect other devices when using the Type C interface to program the image
