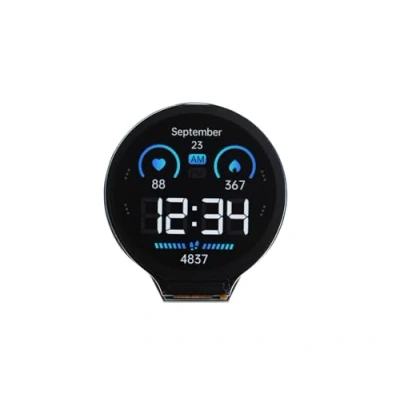

Waveshare ESP32 S3 Development Board with 1.28inch Round LCD Display,32 bit LX7 Dual Core Processor,Support 2.4 GHz Wi FI and Bluetooth 5(Le),Embedded GC9A01 Driver Chip
Description
Amazon
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna.Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory Type-C connector, keeps it up to date, easier to use.Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture.Onboard 3.7V lithium battery recharge/discharge header and GPIO headers Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions
Comparer les boutiques en ligne (1)
Description
(1)
Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (BLE), with onboard antenna.Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory Type-C connector, keeps it up to date, easier to use.Onboard 1.28inch LCD display, round IPS panel, 240×240 resolution, 65K color Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture.Onboard 3.7V lithium battery recharge/discharge header and GPIO headers Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios.Integrated with USB serial port full-speed controller, GPIO pins allow flexibly configuring pin functions
