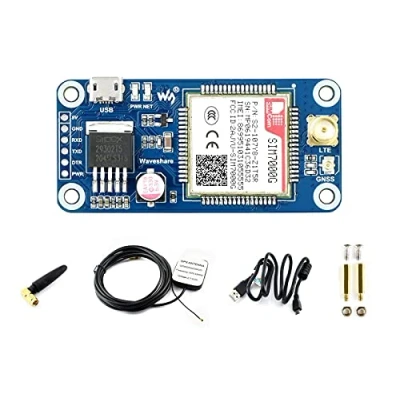

Waveshare SIM7000G NB IoT/Cat M/Edge/GPRS Hat Low Power Narrow Band Cellular IoT Communication Module for GNSS Positioning Global Support Raspberry Pi

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc. Supports GNSS positioning (GPS, BeiDou, GLONASS),Onboard USB interface, to test AT Commands, get GPS positioning data, and so on Breakout UART control pins, to connect with host boards like STM32,Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor SIM card slot, compatible with both normal SIM card and NB-IoT specific card,2x LED indicators, easy to monitor the working status,Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT Baudrate: 300bps~3686400bps (115200bps by default) Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands),Comes with development resources and manual (examples for Raspberry Pi/STM32)
